The CRE-DP is a vertical multistage HVAC pump with its drive, controls and a differential pressure sensor mounted and configured at the factory. Proportional differential pressure control lowers the setpoint at low flow and raises it at high flow, which simulates a remote sensor without running wire to the far end of the system; constant differential pressure, external setpoint and constant curve modes are also built in.
Pump curve data is loaded into the MLE motor, so the pump arrives ready to run. A Grundfos GO app or R100 remote sets it up; CIM and CIU modules connect it to the building management system.
Included: CRE pump with MLE motor and factory-mounted differential pressure sensor (NPT builds include a hollow-stem drain plug; flanged builds include a sensor extension kit).
Ships: by LTL freight.
Needed to run: the supply shown on the build, isolation valves, and the system piping (2 in NPT or ANSI flanges per the Connection option).
| Pump | Grundfos CRE, cast iron / 304 stainless steel |
| Motor | MLE variable speed, TEFC IP55 |
| Control modes | Proportional DP, constant DP, external setpoint (0-10V, 0-20 / 4-20 mA, 10 kΩ pot), constant curve |
| Sensor input | 0-20 / 4-20 mA or 0-10V, 24V sensor supply included |
| I/O | Start/stop input, potential-free signal relay |
| Seal | HQQE, EPDM |
| Power | 1 x 200-240V (0.5-2 HP), 3 x 208-230V (1.5-7.5 HP), 3 x 460-480V (1-30 HP) |
| Model | Part no. | HP | Supply | NEMA frame | DP sensor (psi) | Connection |
|---|---|---|---|---|---|---|
| CRE 10-1 | 91150368 | 1 | 1 x 200-240V | — | 0-36 | 2 in NPT (oval flanges) |
| CRE 10-1 | 91150369 | 1 | 3 x 440-480V | — | 0-36 | 2 in NPT (oval flanges) |
| CRE 10-1 | 99449287 | 1-1/2 | 3 x 200-240V | 56C | 0-36 | 2 in NPT (oval flanges) |
| CRE 10-2 | 99449288 | 1-1/2 | 3 x 200-240V | 56C | 0-58 | 2 in NPT (oval flanges) |
| CRE 10-2 | 91150371 | 1-1/2 | 3 x 440-480V | 56C | 0-58 | 2 in NPT (oval flanges) |
| CRE 10-2 | 91150370 | 2 | 1 x 200-240V | — | 0-58 | 2 in NPT (oval flanges) |
| CRE 10-3 | 99449289 | 3 | 3 x 200-240V | 182TC | 0-87 | 2 in NPT (oval flanges) |
| CRE 10-3 | 91150372 | 3 | 3 x 440-480V | 182TC | 0-87 | 2 in NPT (oval flanges) |
| CRE 10-4 | 99449290 | 3 | 3 x 200-240V | 182TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 10-4 | 91150373 | 3 | 3 x 440-480V | 182TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 10-5 | 99449291 | 5 | 3 x 200-240V | 182TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 10-5 | 91150374 | 5 | 3 x 440-480V | 182TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 15-1 | 91150375 | 2 | 1 x 200-240V | — | 0-36 | 2 in NPT (oval flanges) |
| CRE 15-1 | 99449292 | 2 | 3 x 200-240V | 56C | 0-36 | 2 in NPT (oval flanges) |
| CRE 15-1 | 91150376 | 2 | 3 x 440-480V | 56C | 0-36 | 2 in NPT (oval flanges) |
| CRE 15-2 | 99449293 | 5 | 3 x 200-240V | 182TC | 0-87 | 2 in NPT (oval flanges) |
| CRE 15-2 | 91150377 | 5 | 3 x 440-480V | 182TC | 0-87 | 2 in NPT (oval flanges) |
| CRE 15-3 | 99449294 | 7-1/2 | 3 x 200-240V | 213TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 15-3 | 91150378 | 7-1/2 | 3 x 440-480V | 213TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 15-4 | 99449295 | 7-1/2 | 3 x 200-240V | 213TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 15-4 | 91150379 | 7-1/2 | 3 x 440-480V | 213TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 20-1 | 99449296 | 3 | 3 x 200-240V | 182TC | 0-36 | 2 in NPT (oval flanges) |
| CRE 20-1 | 91150380 | 3 | 3 x 440-480V | 182TC | 0-36 | 2 in NPT (oval flanges) |
| CRE 20-2 | 99449297 | 5 | 3 x 200-240V | 182TC | 0-87 | 2 in NPT (oval flanges) |
| CRE 20-2 | 91150381 | 5 | 3 x 440-480V | 182TC | 0-87 | 2 in NPT (oval flanges) |
| CRE 20-3 | 99449298 | 7-1/2 | 3 x 200-240V | 213TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 20-3 | 91150382 | 7-1/2 | 3 x 440-480V | 213TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 20-4 | 91150383 | 10 | 3 x 440-480V | 213TC | 0-145 | 2 in NPT (oval flanges) |
| CRE 32-1 | 99449300 | 5 | 3 x 200-240V | 182TC | 0-58 | 2-1/2 in ANSI 125 lb |
| CRE 32-1 | 91150385 | 5 | 3 x 440-480V | 182TC | 0-58 | 2-1/2 in ANSI 125 lb |
| CRE 32-1-1 | 99449299 | 5 | 3 x 200-240V | 182TC | 0-58 | 2-1/2 in ANSI 125 lb |
| CRE 32-1-1 | 91150384 | 5 | 3 x 440-480V | 182TC | 0-58 | 2-1/2 in ANSI 125 lb |
| CRE 32-2 | 91150388 | 10 | 3 x 440-480V | 213TC | 0-145 | 2-1/2 in ANSI 125 lb |
| CRE 32-2-1 | 99449302 | 7-1/2 | 3 x 200-240V | 213TC | 0-145 | 2-1/2 in ANSI 125 lb |
| CRE 32-2-1 | 91150387 | 7-1/2 | 3 x 440-480V | 213TC | 0-145 | 2-1/2 in ANSI 125 lb |
| CRE 32-2-2 | 99449301 | 7-1/2 | 3 x 200-240V | 213TC | 0-87 | 2-1/2 in ANSI 125 lb |
| CRE 32-2-2 | 91150386 | 7-1/2 | 3 x 440-480V | 213TC | 0-87 | 2-1/2 in ANSI 125 lb |
| CRE 32-3 | 91150390 | 15 | 3 x 440-480V | 254TC | 0-145 | 2-1/2 in ANSI 125 lb |
| CRE 32-3-2 | 91150389 | 10 | 3 x 440-480V | 213TC | 0-145 | 2-1/2 in ANSI 125 lb |
| CRE 45-1 | 91150392 | 10 | 3 x 440-480V | 213TC | 0-87 | 3 in ANSI 125 lb |
| CRE 45-1-1 | 99449303 | 7-1/2 | 3 x 200-240V | 213TC | 0-58 | 3 in ANSI 125 lb |
| CRE 45-1-1 | 91150391 | 7-1/2 | 3 x 440-480V | 213TC | 0-58 | 3 in ANSI 125 lb |
| CRE 45-2 | 91150395 | 15 | 3 x 440-480V | 254TC | 0-145 | 3 in ANSI 125 lb |
| CRE 45-2-1 | 91150394 | 15 | 3 x 440-480V | 254TC | 0-145 | 3 in ANSI 125 lb |
| CRE 45-2-2 | 91150393 | 15 | 3 x 440-480V | 254TC | 0-145 | 3 in ANSI 125 lb |
| CRE 64-1 | 91150397 | 15 | 3 x 440-480V | 254TC | 0-87 | 4 in ANSI 125 lb |
| CRE 64-1-1 | 91150396 | 10 | 3 x 440-480V | 213TC | 0-58 | 4 in ANSI 125 lb |
| CRE 64-2-1 | 98696759 | 20 | 3 x 440-480V | 254TC | 0-145 | 4 in ANSI 125 lb |
| CRE 64-2-2 | 98696758 | 20 | 3 x 440-480V | 254TC | 0-145 | 4 in ANSI 125 lb |

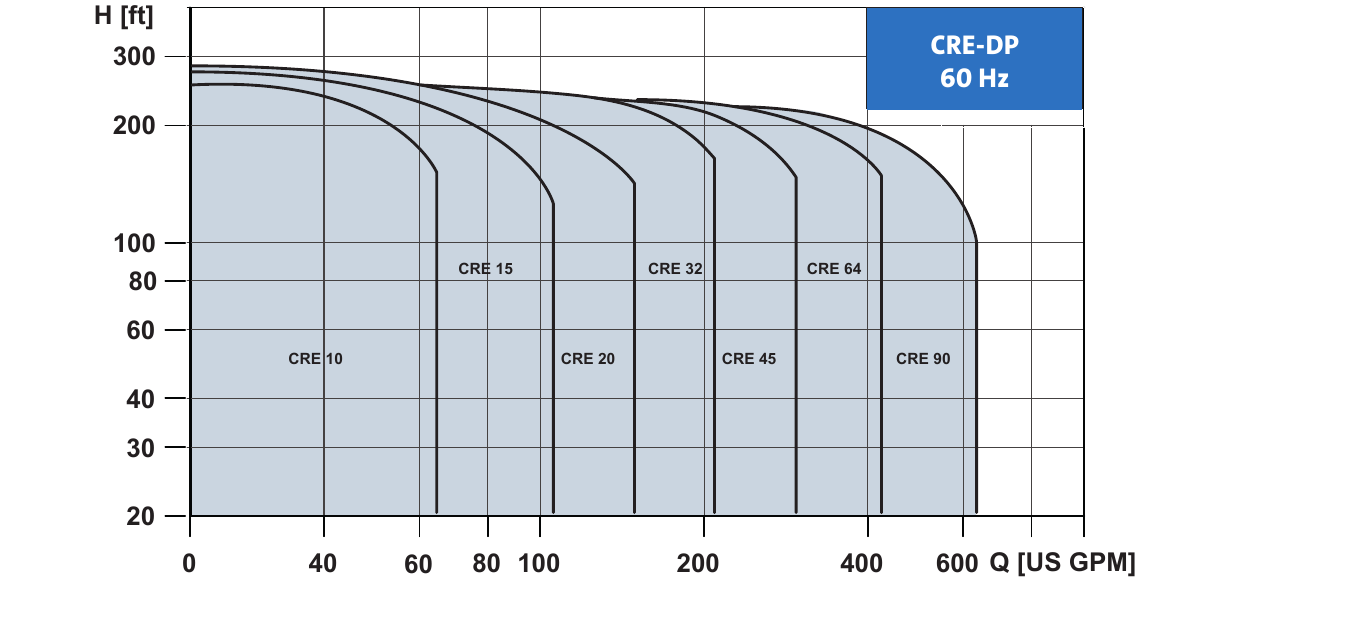

From the Grundfos 2026 Industrial price book. The performance range chart is in the images; send us the flow and head and we will confirm the model on its curve.
| Duty point | Pick the model whose curve covers the design flow and head; DP sensor range rises with pump head. |
| Service | Closed HVAC loops: chilled water, hot water, district systems, cooling towers. |
Chilled water and hot water distribution, district heating and cooling, and cooling tower loops.
