The VLS is a single-stage centrifugal pump built vertically in the pipe: suction and discharge sit on one centerline, the pump stands on its own base on the floor, and a standard motor sits on a bracket above, joined to the pump shaft by a split coupling. It is Grundfos’s PACO design for large circulating and transfer duties where floor space is tight: chilled and condenser water, heating loops, cooling towers and water supply. Every build runs at 1800 RPM, and Grundfos trims the impeller to the flow and head the system needs.
Features from Grundfos leaflet VLSE/VLSC (LVLCSL01, 07.2024), which uses this VLS pump with an integrated or separate drive.
Included: the pump and motor assembled on the pump stand, with the split coupling, shipped in a crate with a wooden base for a forklift (Installation and Operating Instructions, section 3.1).
Ships by freight: 615 to 3,095 lb shipping weight; plan for a forklift or hoist at delivery.
Sized at install: isolating valves on both sides and a motor starter with overload protection.
Covered for 12 months from the date of purchase under Grundfos’s published warranty terms.
| Pump type | Single-stage, vertical in-line centrifugal pump, split-coupled, mechanical shaft seal |
| Speed | 1800 RPM (curves published at 1750 RPM) |
| Motor | 3 to 75 HP, three-phase; supply voltage confirmed with the order |
| Ports | In-line flanged suction and discharge, same size, 1-1/2 to 8 in |
| Impeller | Trimmed to the duty point; 4.5 to 12.1 in on the published curves |
| Working pressure | 175 psi maximum |
| Liquid temperature | 10 to 275°F |
| Ambient temperature | 104°F maximum |

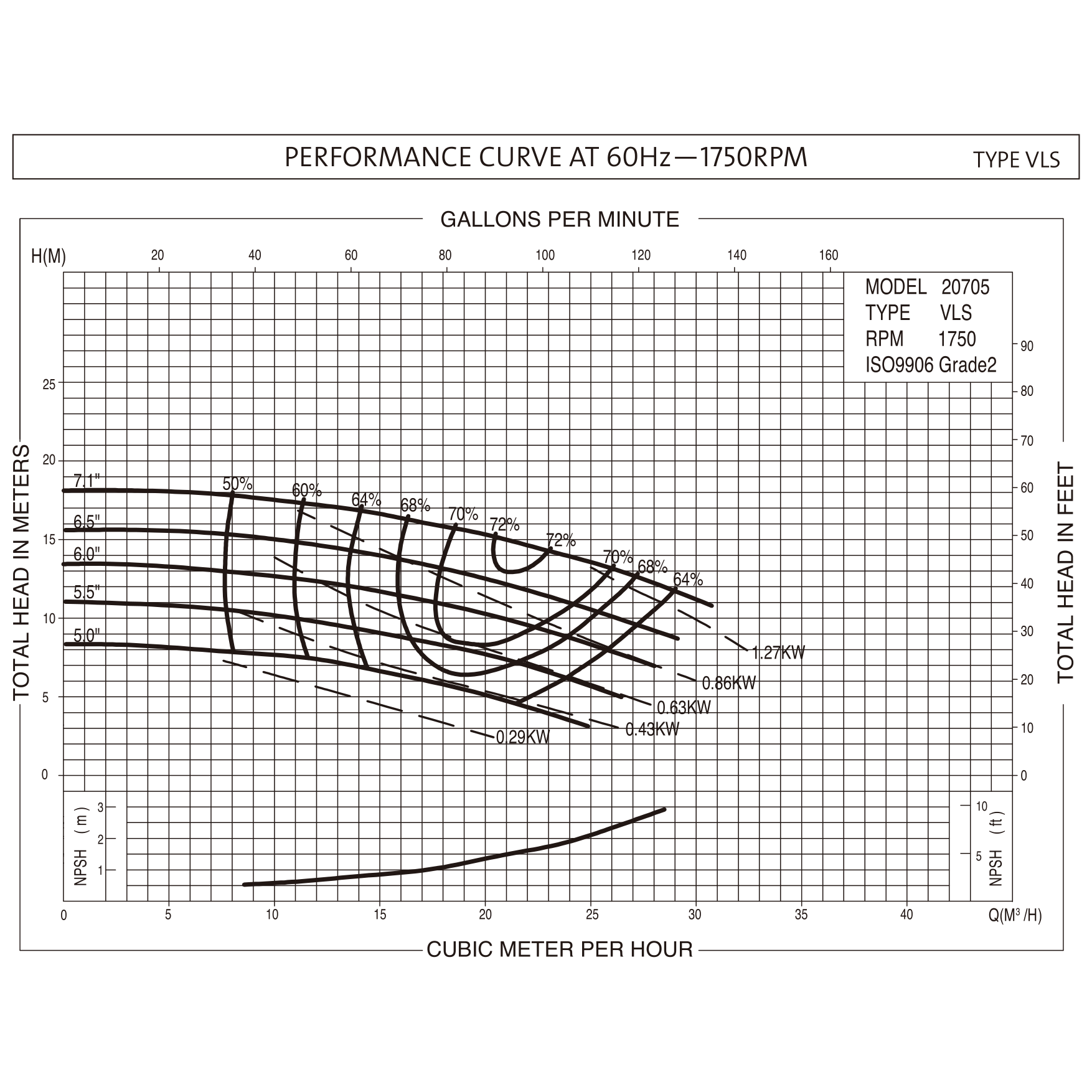

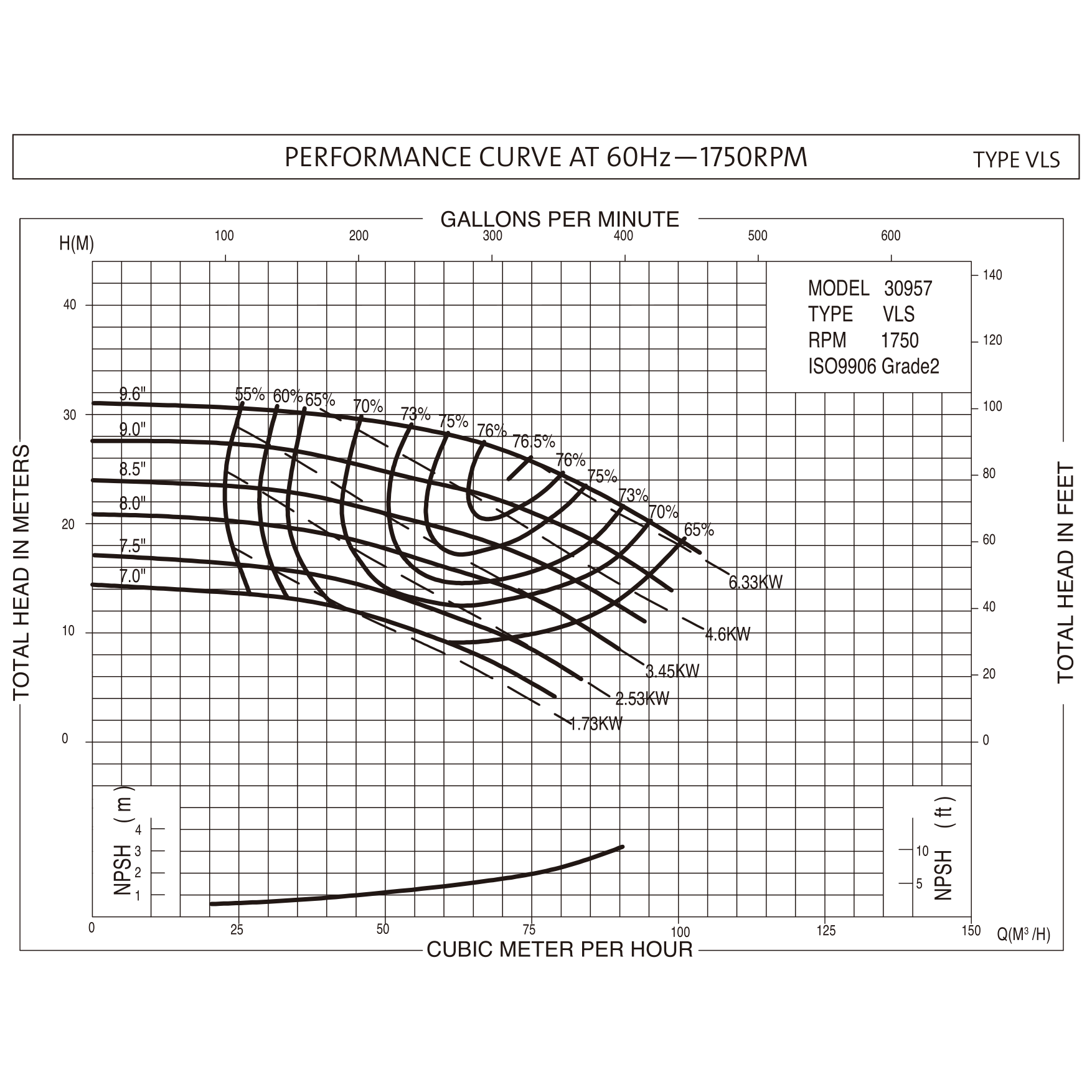

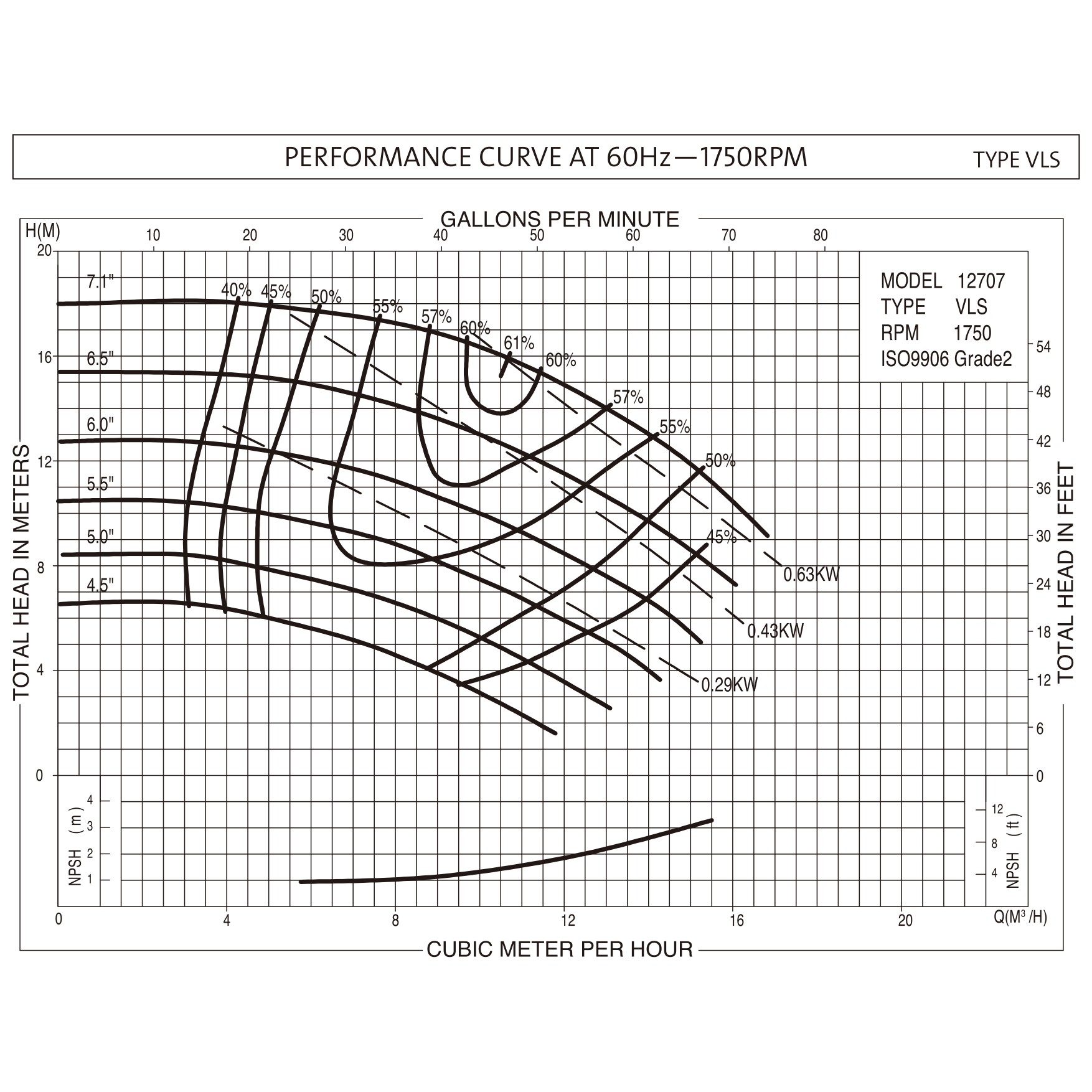

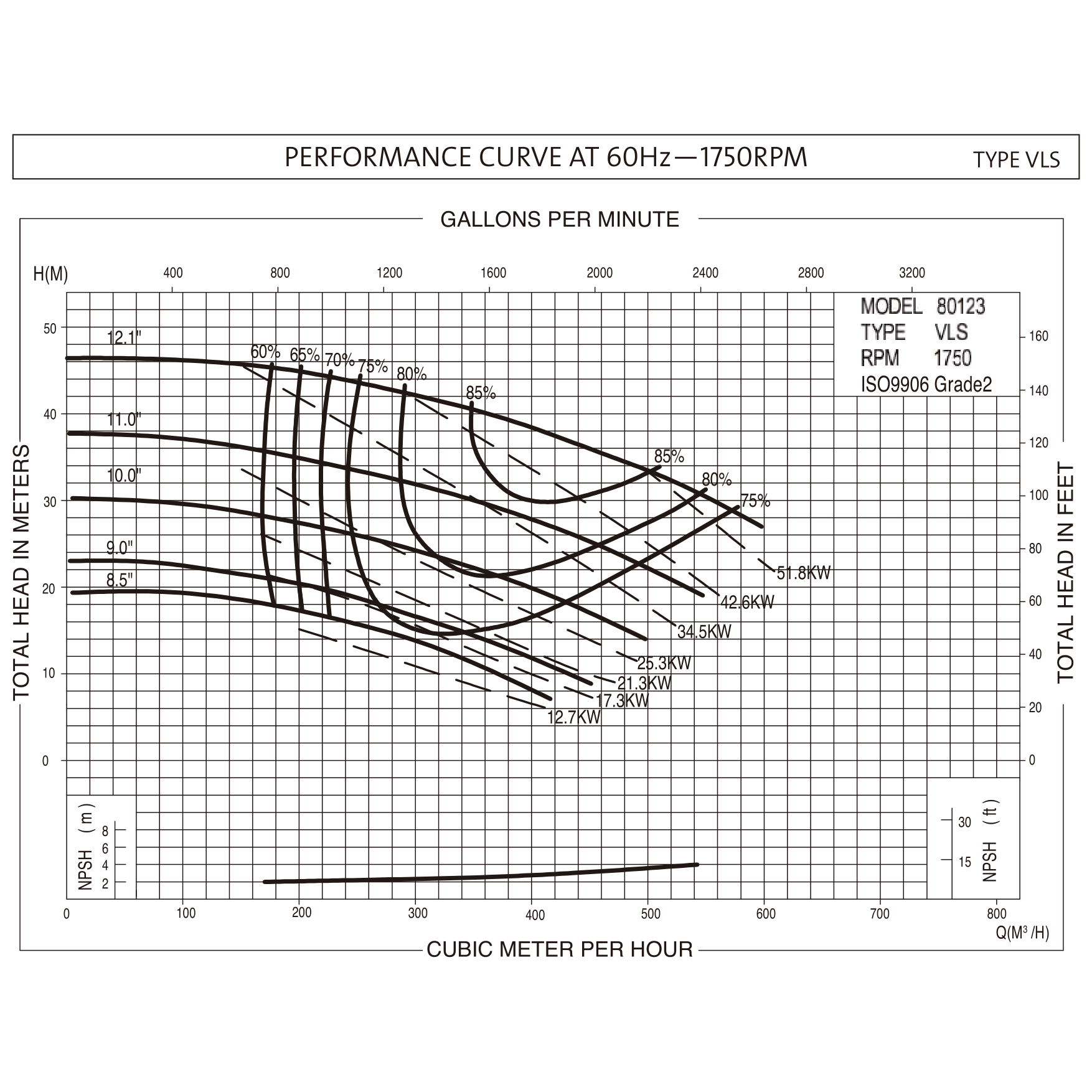

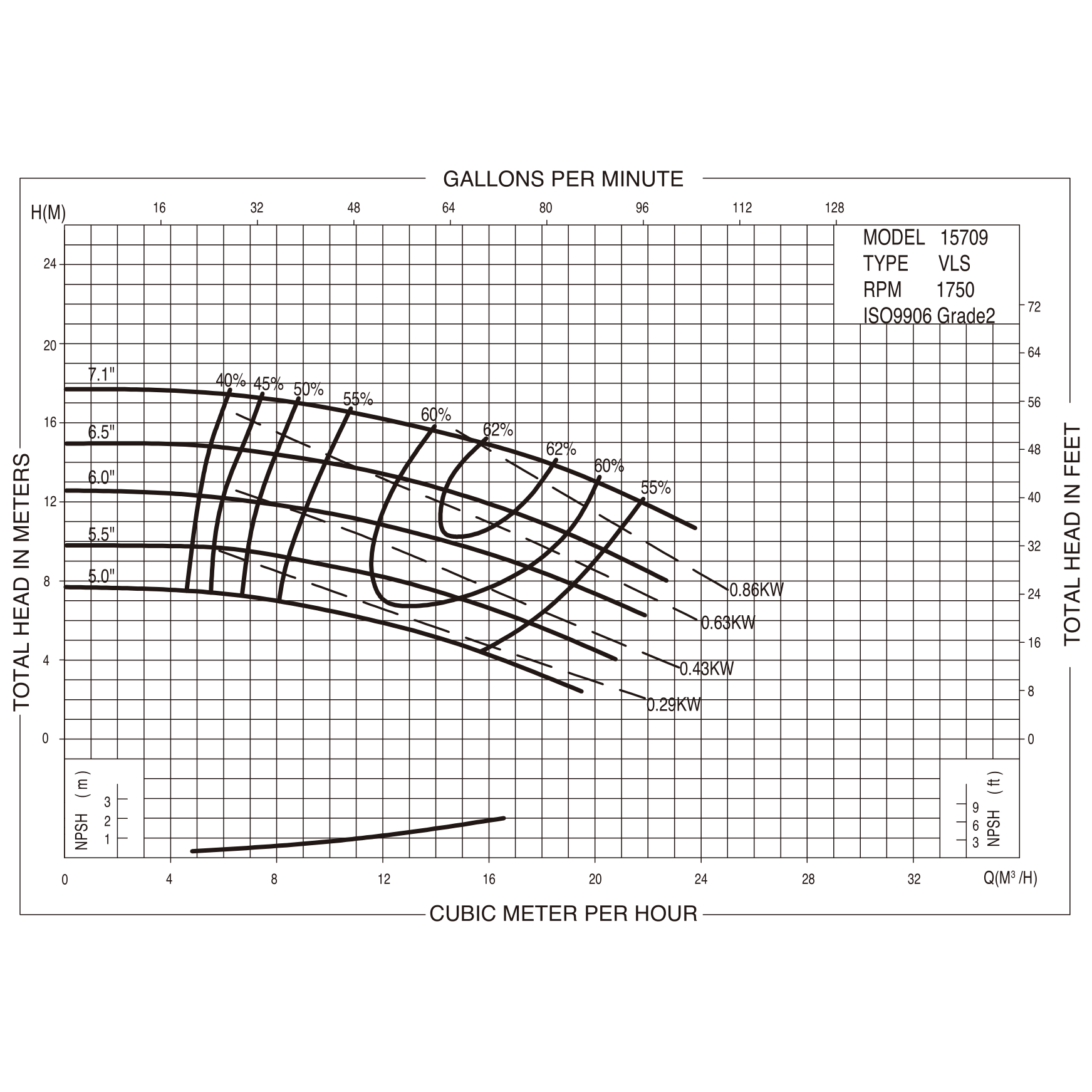

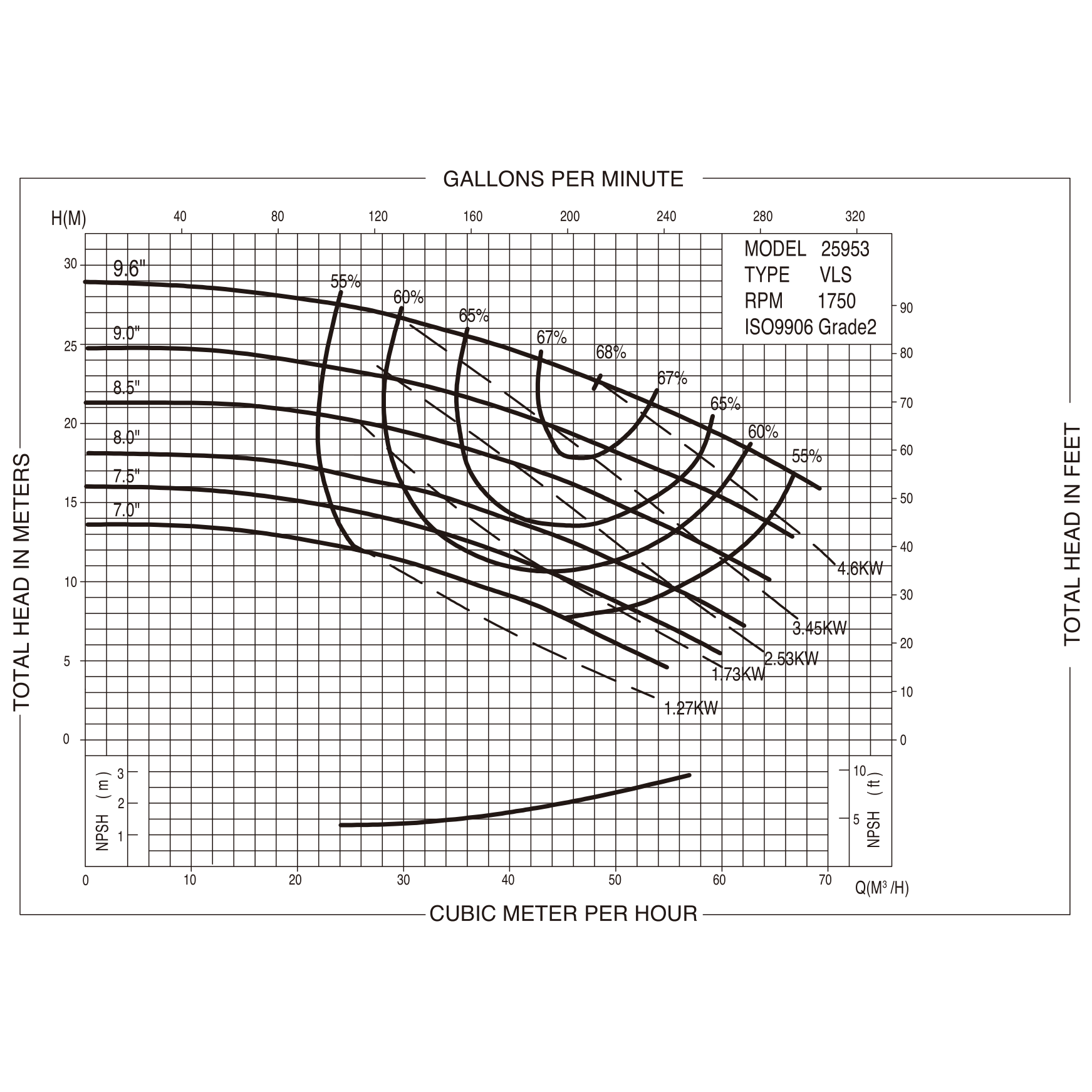

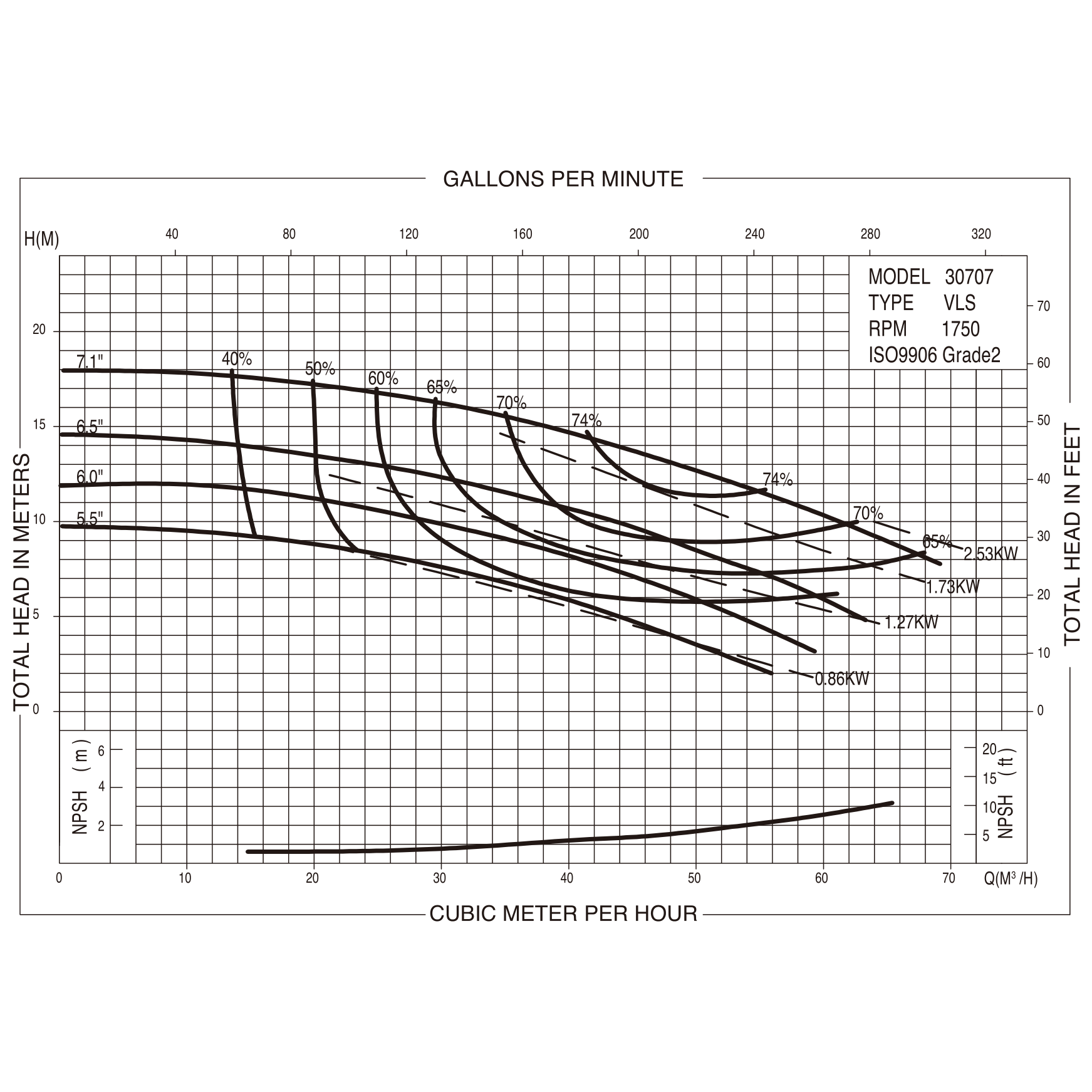

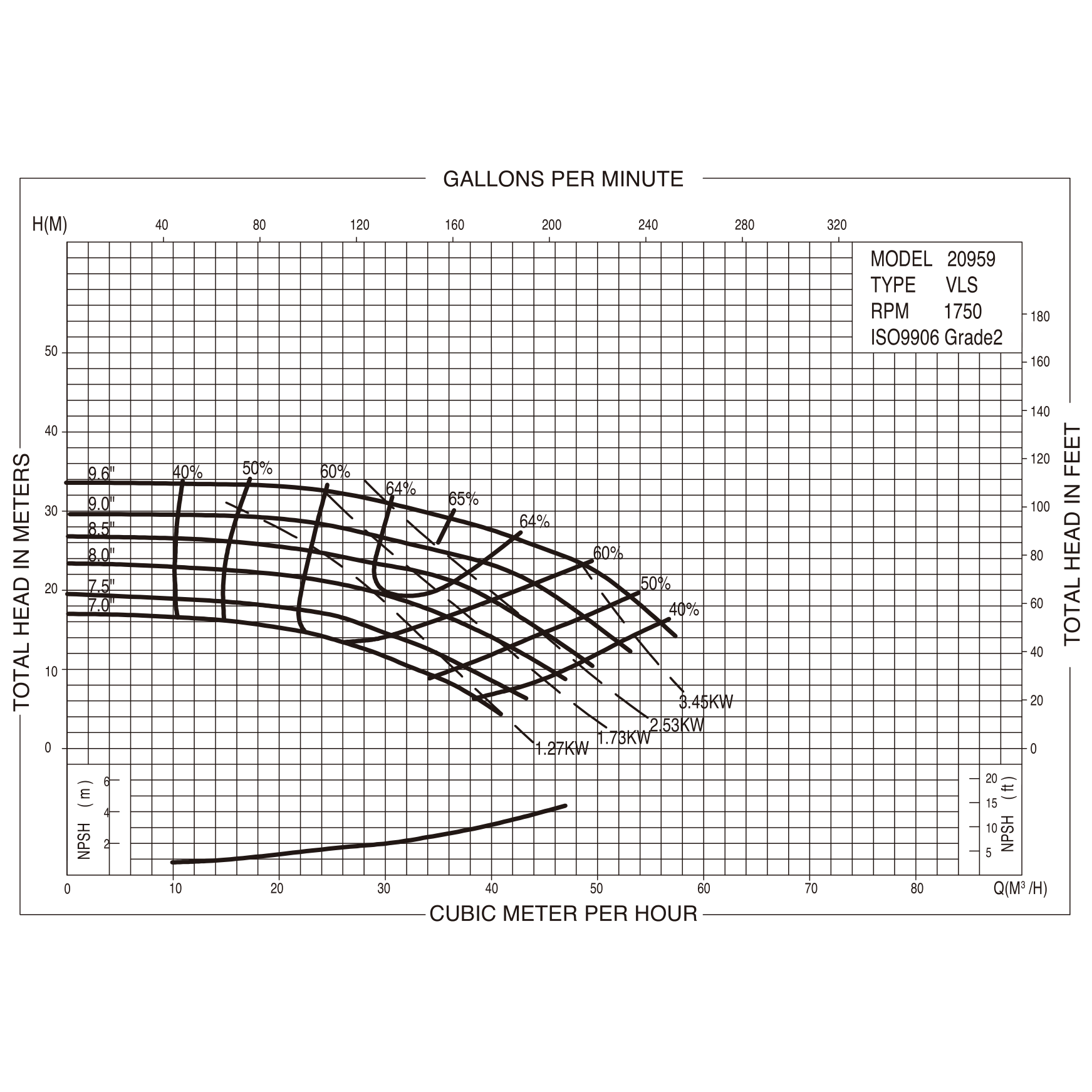

Pick the model whose curve passes through your duty point, then open its table. Each row is one impeller diameter Grundfos publishes for that model at 1750 RPM; every figure is the total head the pump adds at that flow. Grundfos trims the impeller to your duty point, and the motor HP sets the largest impeller a build can carry: the dashed lines on each curve in the image gallery mark the motor size each impeller needs.
| Model | Port | HP builds | Shut-off head, smallest to largest impeller | Max flow, largest impeller |
|---|---|---|---|---|
| VLS 12707 | 1-1/2 in | 3 | 21-59 ft | 74 GPM |
| VLS 15709 | 1-1/2 in | 3 | 25-58 ft | 104 GPM |
| VLS 20705 | 2 in | 3 | 27-59 ft | 135 GPM |

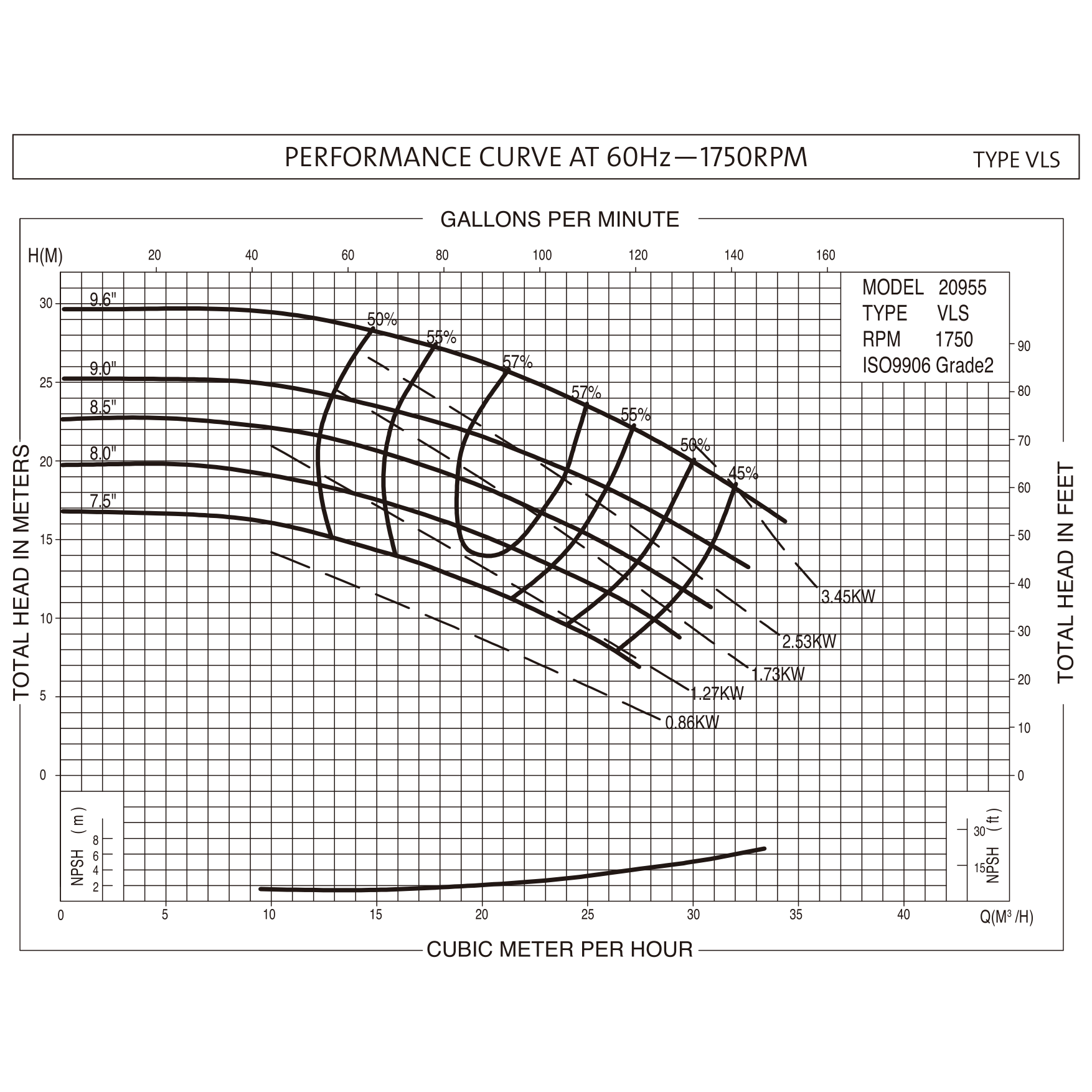

| VLS 20955 | 2 in | 3, 5 | 55-97 ft | 151 GPM |
| VLS 20959 | 2 in | 3, 5, 7 1/2 | 55-110 ft | 252 GPM |

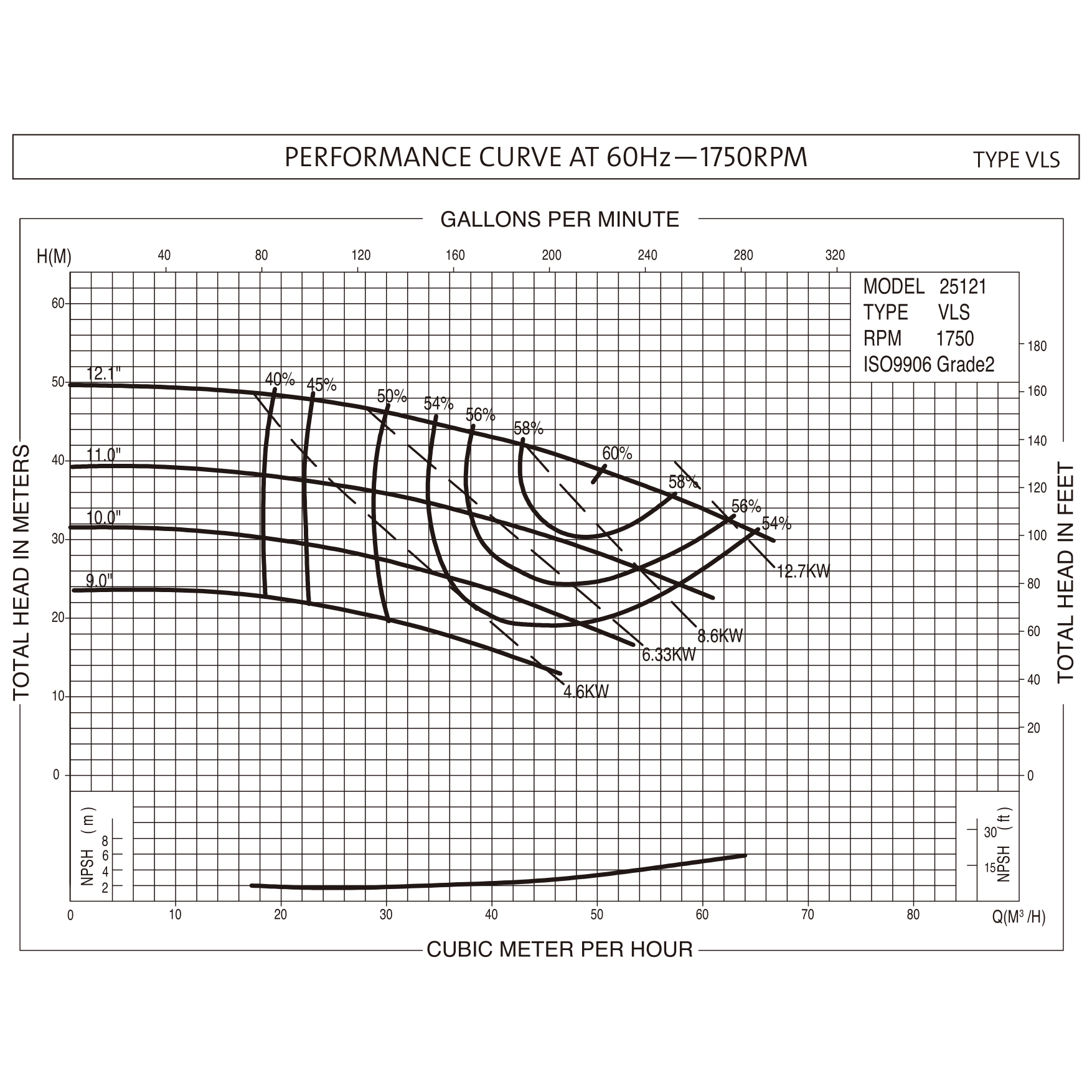

| VLS 25121 | 2-1/2 in | 7 1/2, 10, 15 | 77-162 ft | 293 GPM |

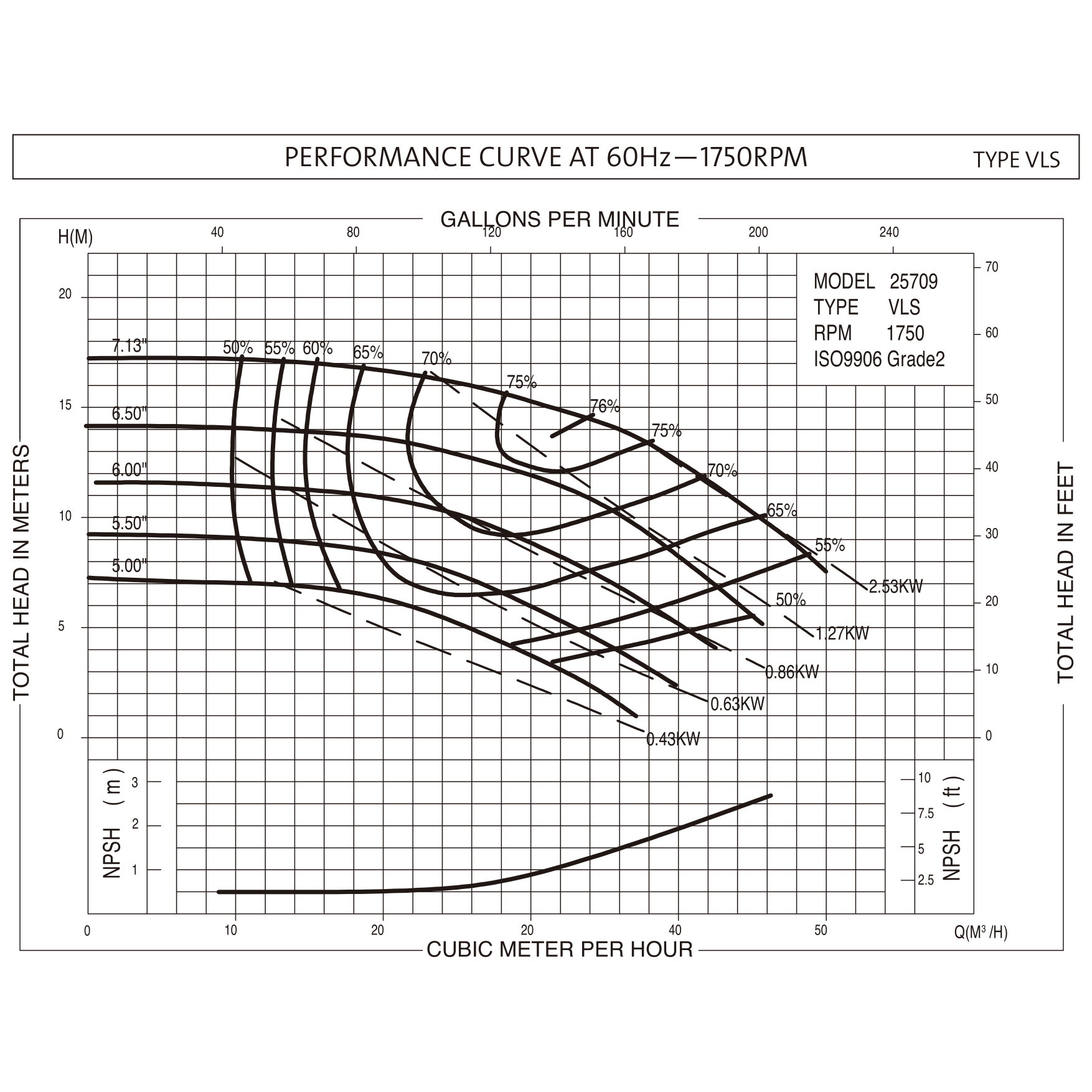

| VLS 25709 | 2-1/2 in | 3 | 23-56 ft | 220 GPM |
| VLS 25953 | 2-1/2 in | 3, 5, 7 1/2 | 44-94 ft | 304 GPM |
| VLS 30707 | 3 in | 3, 5 | 31-58 ft | 304 GPM |
| VLS 30957 | 3 in | 5, 7 1/2, 10 | 47-101 ft | 456 GPM |

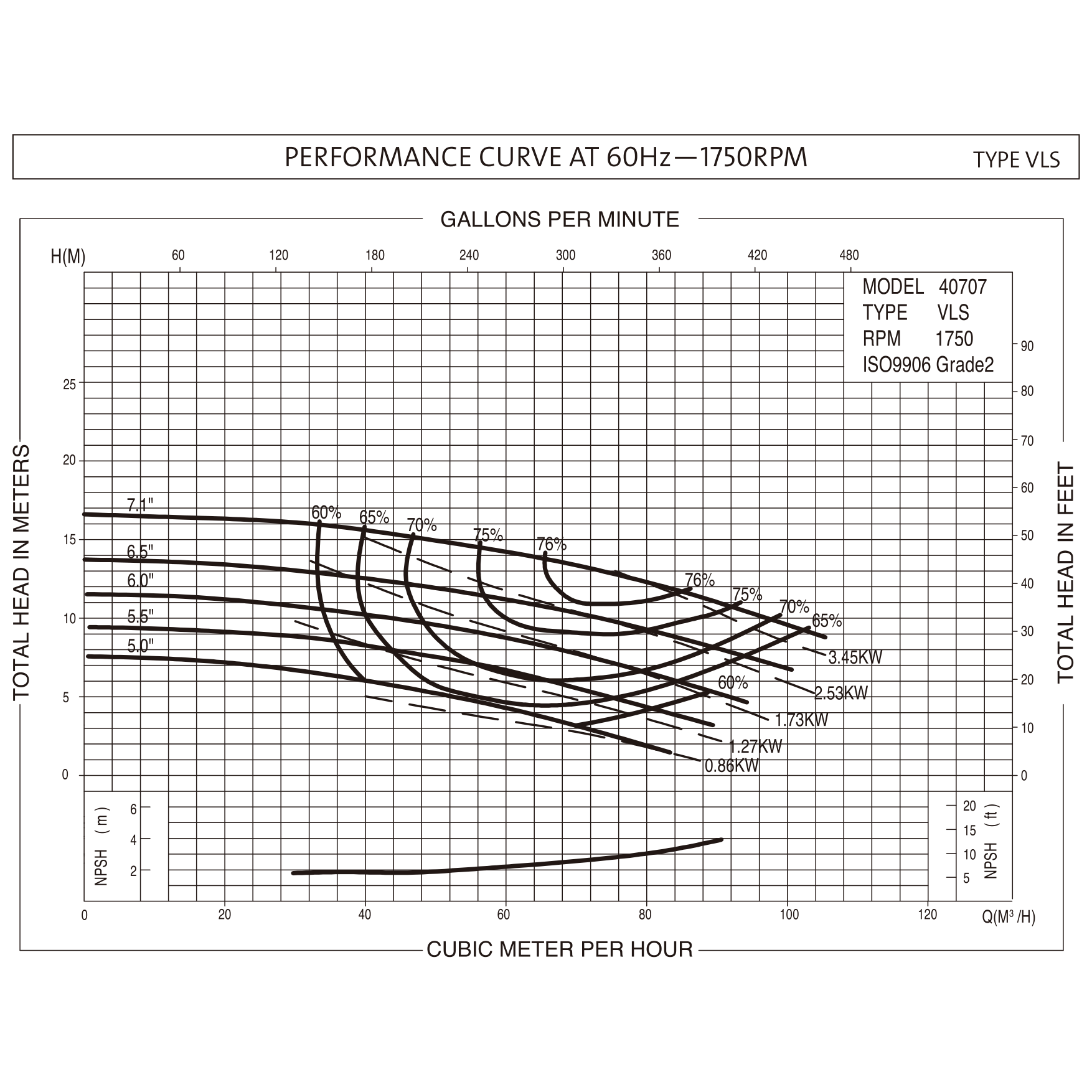

| VLS 40707 | 4 in | 3, 5 | 24-54 ft | 464 GPM |
| VLS 80123 | 8 in | 75 | 63-152 ft | 2,632 GPM |
All figures from the 1750 RPM curves in the Grundfos PACO VLS data booklet, 50/60 Hz, pp. 21-32, digitized and rounded down. PSI = feet ÷ 2.31.
| Impeller | 0 GPM (Shut-off) | 15 GPM | 35 GPM | 55 GPM | 74 GPM (Max) |
|---|---|---|---|---|---|
| 7.1 in | 59 | 59 | 56 | 47 | 30 |
| 6.5 in | 50 | 50 | 46 | 36 | — |
| 6 in | 41 | 41 | 36 | 26 | — |
| 5.5 in | 34 | 34 | 29 | 18 | — |
| 5 in | 27 | 27 | 21 | 10 | — |
| 4.5 in | 21 | 21 | 15 | — | — |
| Impeller | 0 GPM (Shut-off) | 20 GPM | 50 GPM | 80 GPM | 104 GPM (Max) |
|---|---|---|---|---|---|
| 7.1 in | 58 | 57 | 53 | 45 | 35 |
| 6.5 in | 49 | 48 | 44 | 35 | — |
| 6 in | 41 | 40 | 36 | 27 | — |
| 5.5 in | 32 | 31 | 27 | 18 | — |
| 5 in | 25 | 24 | 19 | 10 | — |
| Impeller | 0 GPM (Shut-off) | 25 GPM | 70 GPM | 100 GPM | 135 GPM (Max) |
|---|---|---|---|---|---|
| 7.1 in | 59 | 59 | 53 | 47 | 35 |
| 6.5 in | 51 | 50 | 45 | 37 | — |
| 6 in | 44 | 43 | 37 | 30 | — |
| 5.5 in | 36 | 35 | 28 | 21 | — |
| 5 in | 27 | 26 | 20 | 13 | — |
| Impeller | 0 GPM (Shut-off) | 30 GPM | 75 GPM | 115 GPM | 151 GPM (Max) |
|---|---|---|---|---|---|
| 9.6 in | 97 | 97 | 90 | 74 | 53 |
| 9 in | 82 | 82 | 74 | 59 | — |
| 8.5 in | 74 | 74 | 64 | 47 | — |
| 8 in | 64 | 64 | 54 | 37 | — |
| 7.5 in | 55 | 54 | 44 | 26 | — |
| Impeller | 0 GPM (Shut-off) | 50 GPM | 125 GPM | 190 GPM | 252 GPM (Max) |
|---|---|---|---|---|---|
| 9.6 in | 110 | 109 | 103 | 85 | 47 |
| 9 in | 97 | 96 | 88 | 70 | — |
| 8.5 in | 87 | 86 | 77 | 53 | — |
| 8 in | 76 | 74 | 65 | 38 | — |
| 7.5 in | 64 | 61 | 50 | 21 | — |
| 7 in | 55 | 54 | 40 | — | — |
| Impeller | 0 GPM (Shut-off) | 60 GPM | 145 GPM | 220 GPM | 293 GPM (Max) |
|---|---|---|---|---|---|
| 12.1 in | 162 | 160 | 148 | 128 | 98 |
| 11 in | 128 | 127 | 114 | 92 | — |
| 10 in | 103 | 101 | 86 | 60 | — |
| 9 in | 77 | 76 | 62 | — | — |
| Impeller | 0 GPM (Shut-off) | 45 GPM | 110 GPM | 165 GPM | 220 GPM (Max) |
|---|---|---|---|---|---|
| 7.13 in | 56 | 56 | 52 | 44 | 24 |
| 6.5 in | 46 | 46 | 42 | 31 | — |
| 6 in | 38 | 37 | 33 | 20 | — |
| 5.5 in | 30 | 29 | 24 | 10 | — |
| 5 in | 23 | 23 | 17 | — | — |
| Impeller | 0 GPM (Shut-off) | 60 GPM | 150 GPM | 230 GPM | 304 GPM (Max) |
|---|---|---|---|---|---|
| 9.6 in | 94 | 93 | 84 | 70 | 52 |
| 9 in | 81 | 80 | 72 | 57 | — |
| 8.5 in | 69 | 69 | 61 | 46 | — |
| 8 in | 59 | 58 | 50 | 34 | — |
| 7.5 in | 52 | 51 | 42 | 26 | — |
| 7 in | 44 | 43 | 34 | 17 | — |
| Impeller | 0 GPM (Shut-off) | 60 GPM | 150 GPM | 230 GPM | 304 GPM (Max) |
|---|---|---|---|---|---|
| 7.1 in | 58 | 57 | 51 | 39 | 25 |
| 6.5 in | 47 | 46 | 38 | 26 | — |
| 6 in | 38 | 38 | 30 | 17 | — |
| 5.5 in | 31 | 30 | 22 | 9 | — |
| Impeller | 0 GPM (Shut-off) | 90 GPM | 230 GPM | 340 GPM | 456 GPM (Max) |
|---|---|---|---|---|---|
| 9.6 in | 101 | 100 | 95 | 82 | 56 |
| 9 in | 90 | 89 | 80 | 67 | — |
| 8.5 in | 78 | 77 | 67 | 53 | — |
| 8 in | 68 | 66 | 56 | 41 | — |
| 7.5 in | 56 | 54 | 43 | 25 | — |
| 7 in | 47 | 45 | 35 | 15 | — |
| Impeller | 0 GPM (Shut-off) | 95 GPM | 230 GPM | 350 GPM | 464 GPM (Max) |
|---|---|---|---|---|---|
| 7.1 in | 54 | 53 | 48 | 40 | 28 |
| 6.5 in | 45 | 43 | 38 | 30 | — |
| 6 in | 37 | 36 | 30 | 21 | — |
| 5.5 in | 30 | 29 | 24 | 14 | — |
| 5 in | 24 | 23 | 16 | 6 | — |
| Impeller | 0 GPM (Shut-off) | 530 GPM | 1,300 GPM | 1,950 GPM | 2,632 GPM (Max) |
|---|---|---|---|---|---|
| 12.1 in | 152 | 151 | 138 | 119 | 88 |
| 11 in | 123 | 120 | 105 | 84 | — |
| 10 in | 99 | 96 | 80 | 57 | — |
| 9 in | 75 | 72 | 55 | 30 | — |
| 8.5 in | 63 | 62 | 46 | — | — |
Head in feet. Flows are the points nearest 20%, 50% and 75% of the largest impeller’s curve, then its end. Bold = the last column that impeller’s curve reaches; — = beyond its end. Page numbers refer to the data booklet in the Data Sheet tab.
VLS 2095A, 30125, 40129 and 40159: the data booklet prints no curve for these four models. Email us your duty point and we will confirm the model and impeller with a Grundfos selection.
| Duty point | Send us flow and head: Grundfos selects the model and trims the impeller to it, within the motor HP of the build you order |
| Liquid | Thin, clean, non-aggressive, non-explosive liquids with no solids or fibers |
| Temperature | 10 to 275°F liquid; ambient up to 104°F |
| Pressure | 175 psi maximum working pressure; inlet pressure plus shut-off pressure must stay below it |
| Power | Three-phase; confirm voltage when ordering |
| Mounting | Indoor, dry and frost-free, standing on its own base; motors from frame 160L up install only in horizontal pipe with the motor vertical |
From Grundfos VLS Installation and Operating Instructions, sections 7-9.
Chilled and condenser water, heating and district heating, air-conditioning circulation, cooling towers and data center cooling, water supply and pressure boosting, and industrial circulation and transfer.
| Volute casing | Cast iron ASTM A48 Class 30 |
| Impeller | Bronze C83600 |
| Cover and cap | Cast iron ASTM A48 Class 30 |
| Pump shaft | Stainless steel 316 |
| Wear rings | Bronze C93200 |
| Bushing | Nickel-aluminum bronze C95500 |
| Motor bracket and stand | Cast iron ASTM A48 Class 30 |
| Shaft seal | Carbon / ceramic, Buna-N (standard) |
Standard cast iron and bronze build (material code CB) from the Grundfos PACO VLS data booklet, 50/60 Hz, p. 10. Ductile iron, all-bronze, nickel-aluminum bronze and stainless steel builds are factory options.
Grundfos lists one impeller, one mechanical seal, the wear rings, the volute O-ring or gasket, the seal-cap O-ring and the shaft bushing as the recommended spare set. Send us the pump nameplate and we will quote the set.
