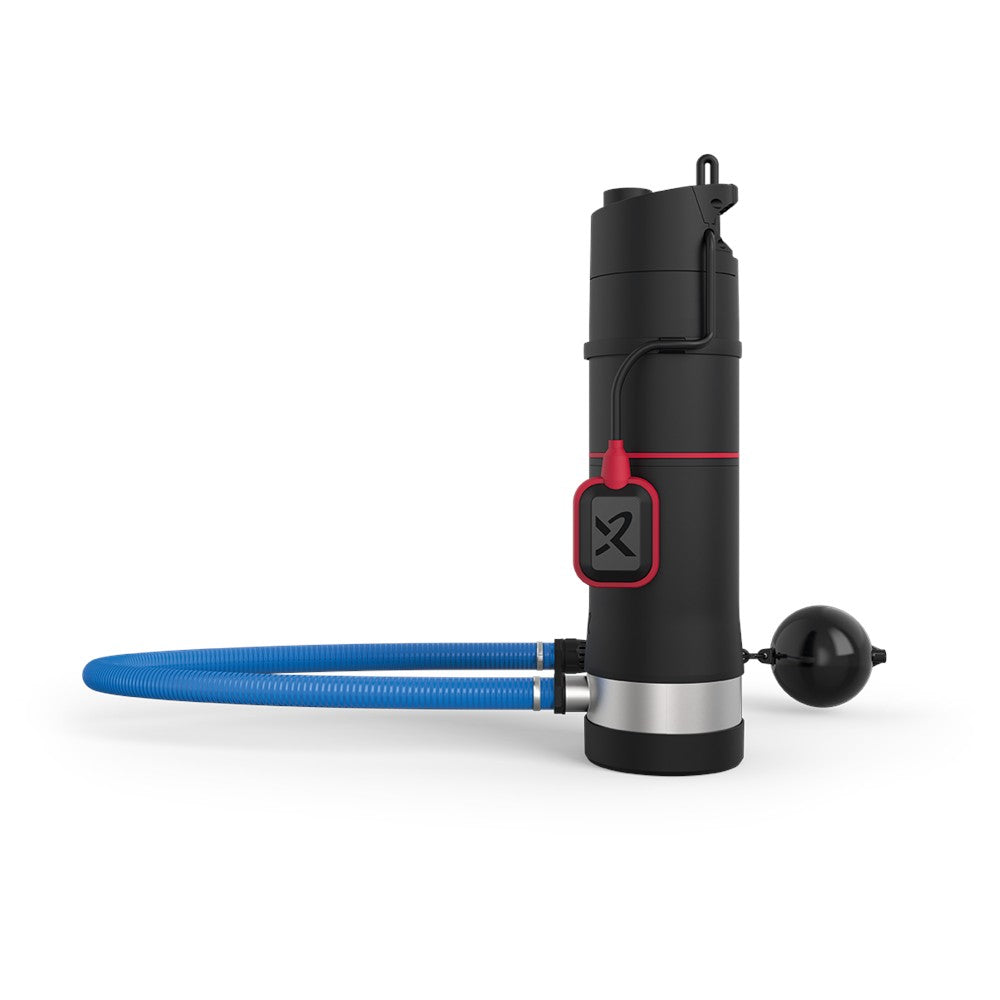

Grundfos SBA 3-45 AW with floating inlet strainer

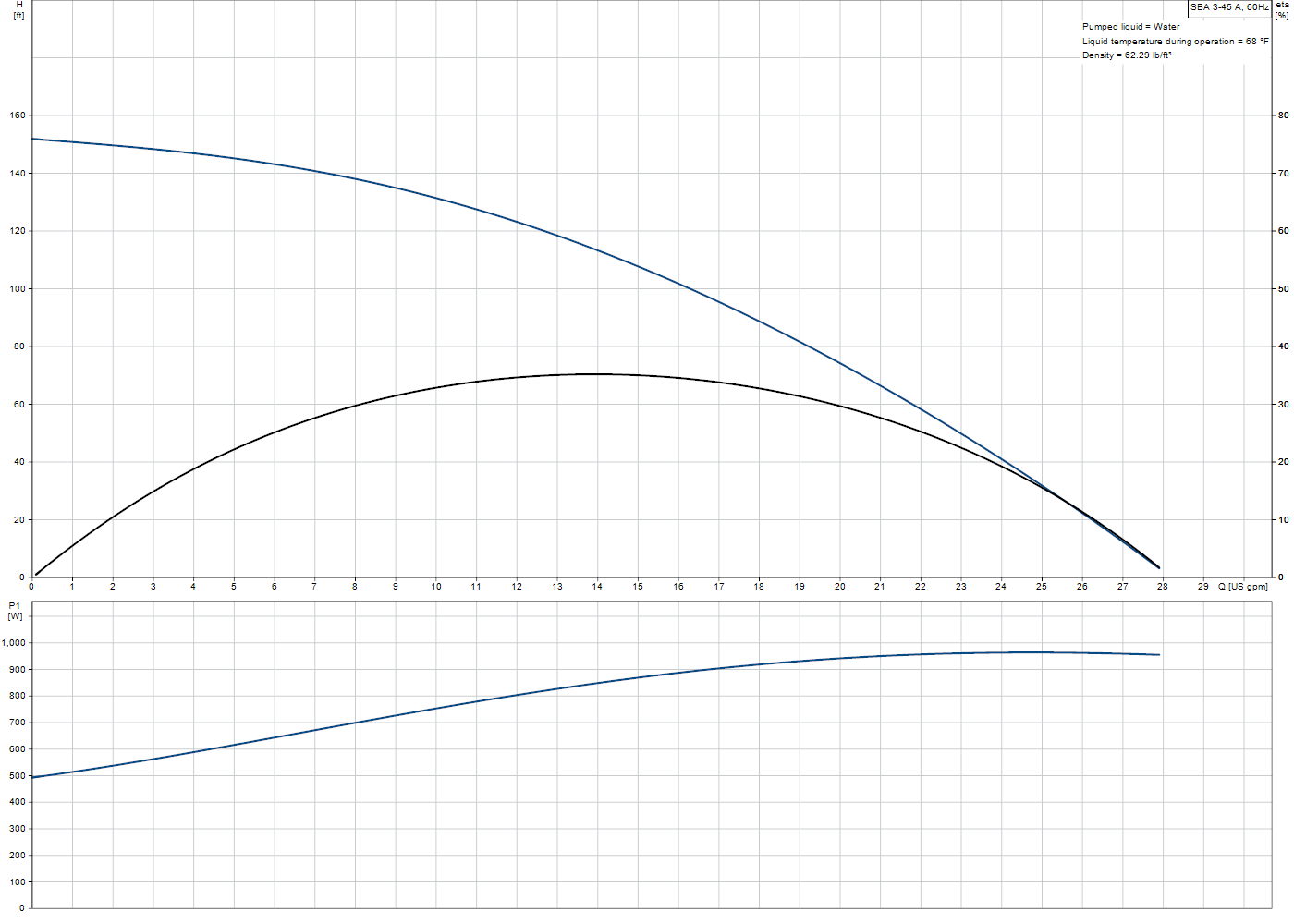

Grundfos SBA 3-45 60 Hz performance curve
Grundfos SBA 3-45 A submersible booster pump
Grundfos SBA 3-45 AW with floating inlet strainer
Grundfos SBA 3-45 60 Hz performance curve

Grundfos SBA Submersible Rainwater Booster Pump

Boost - Flow: 64 PSI Max Boost - 28 GPM Max
HP - Voltage: 1 HP - 110-120V 1Ph
Inlet - Model: Inlet Strainer - SBA 3-45 A

Product variant with selected options does not exist!
$1,333.68
SKU: 92713157
Weight : 31.1 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Submersible Booster Pump
SBA Rainwater and Cistern Booster
2 builds: SBA 3-45 A with fixed inlet strainer, SBA 3-45 AW with floating inlet strainer.
64 PSI Max Boost, 28 GPM Max
1 HP (0.83 HP P2), 115V 1Ph Plug-In
Automatic Start/Stop, Built-In Check Valve
Float Switch Dry-Run Protection
Submersible to 32.8 ft
Composite Housing and Impellers
1 in NPT Outlet
CSA
Overview

SBA is a submersible pump for supplying a house or garden from a rainwater tank, cistern or well. It sits in the water, so there is no priming and almost no noise. Built-in controls start the pump when a tap opens (start pressure about 32 psi) and stop it when the flow stops; a built-in non-return valve holds the line, and the float switch stops the pump before the tank runs dry.

SBA 3-45 A draws through a fixed inlet strainer near the bottom of the pump. SBA 3-45 AW adds a floating suction hose and strainer that draws just below the surface, where rainwater is cleanest and away from settled sludge.

What Ships and What It Needs to Run

Included: the pump with 44.9 ft cable and 115V plug, float switch, and on the AW the floating inlet strainer with hose.

Ships: about 31-32 lb, by parcel.

Needed to run: a 1 in discharge line, a GFCI-protected 115V outlet, and a lifting rope.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Performance — Will It Do What You Need?
Model Max head Max flow Rated duty
SBA 3-45 A / AW 147.6 ft (64 psi) 28 GPM 13.3 GPM at 116.8 ft (51 psi)

From Grundfos Product Center 60 Hz data and curve. The curve is the variant image. PSI = feet ÷ 2.31.

Specifications
Pump type Submersible multistage (3 impellers) with built-in pressure/flow control
Motor 1 x 110-120 V V, 9.5 A, P1 1.34 HP, P2 0.831 HP
Cable 44.9 ft SJTWA with 115V plug
Outlet 1 in NPT
Liquid Clean water, 32°F to 104°F, pH 4-9
Max installation depth 32.8 ft
Max solids 0.039 in (1 mm)
Enclosure IPX8, insulation class F, built-in motor protection
Before You Buy — The Limits That Decide the Fit
Water Clean water only; the strainer passes 1 mm particles.
Pressure Delivers up to about 64 psi at no flow and 51 psi at 13 GPM; check the house needs against the curve.
Power 115V only, about 9.5 A running.
Materials of Construction
Pump housing Composite, PP-GF30
Impellers Composite, PPO-20GF
Applications

Rainwater harvesting tanks, cisterns and shallow wells feeding toilets, laundry, irrigation and garden taps.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
