Typically ships in 7-10 business days

Product Features:

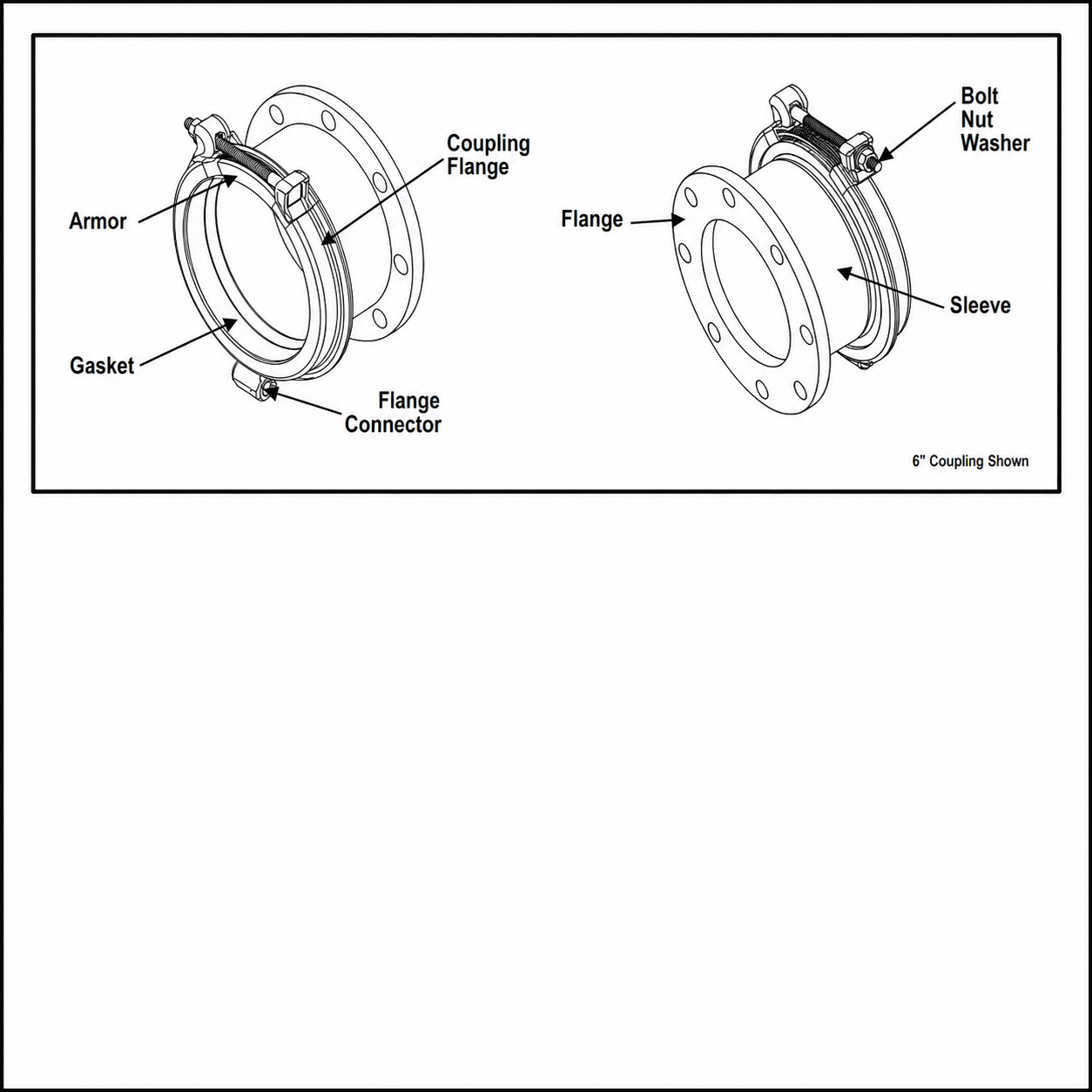

• A fabricated Steel flanged coupling adapter that can seal a wide range of pipe ODs in a nominal size.
• Application Connects a wide variety of plain-end pipe to flanged fittings meters valves and otherflanged equipment.
• Removable/replaceable channeled inner gaskets which makes the 921 the only FCA in which you can remove the inner gasket without changing the part
• Bi-directional gaskets can be inserted either way less chance for mistakes
• Corrugated armor design to reduce friction between gaskets and armor for better seating and to prevent finish gouging
• Lightweight construction for easier handling quicker job installations
• Two-piece flange design (coupling end) that can be disassembled on job site for gasket replacement if required
• Stab-Fit which makes pipe fitting easier and quicker
• Proprietary Flexi-Coat Fusion-Bonded coating on body and hardware to reduce friction and help prevent corrosion points

Materials:

• SLEEVE Carbon Steel
• FLANGE 3-12 AWWA C207 Class D ANSI 150 lb. drilling. 2 size is standard meter coupling flange
• RING Carbon Steel
• GASKET Nitrile (Buna N) certified to NSF/ANSI 61
• BOLTS 304 Stainless Steel with Flexi-Coat Fusion bonded Epoxy Finish
• NUTS Heavy hex head 304 Stainless Steel fluoropolymer coating
• FINISH Flexi-Coat Smith-Blairs proprietary Fusion-Bonded epoxy finish 12-15 mils thick
• Pipe Applications Ductile Iron Steel PVC Copper Asbestos Cement HDPE (with pipe stiffeners)

Specifications:

• Nominal sizes: 2" through 12"
• Top Bolt design for easy access and installation
• Body: Fabricated Steel with Flexi-Coat Epoxy finish
• Gaskets: patented removable/replaceable
• Working pressure: per design

Style 921 Installation Instructions

Style 921 Spec Sheet

Style 921 Datasheet
