Included: the Mini Mac pump, a replacement impeller, a puddle scoop and a 6 ft suction hose for draining flat surfaces.
Sized at install: garden hose for the discharge.
The Mini Mac transfer pump kit handles most domestic and commercial pumping jobs. With durable cast brass and stainless steel construction it is built for long life and handles liquids from 40°F to 130°F: emptying water heaters, bilge pumping, bait tanks, liquid transfer, clogged sinks and dewatering. The liquid must be compatible with the pump materials; not for flammable liquids.
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first under Baker Manufacturing’s published limited warranty (A.Y. McDonald Pumps & Accessories price list, effective 7/1/26). Per Baker’s terms, the warranty does not cover failure caused by sand or abrasive materials in the water.
Single unit.
| Item | Model | Part No. | Weight |
|---|---|---|---|
| Transfer pump kit | 300611TPK | 6195-010 | 6 lb |
| Impeller repair kit | 300622RK | 6195-012 | 1 lb |
Source: A.Y. McDonald Pumps by Baker catalog, rev 3/26, and Pumps & Accessories price list, effective 7/1/26.

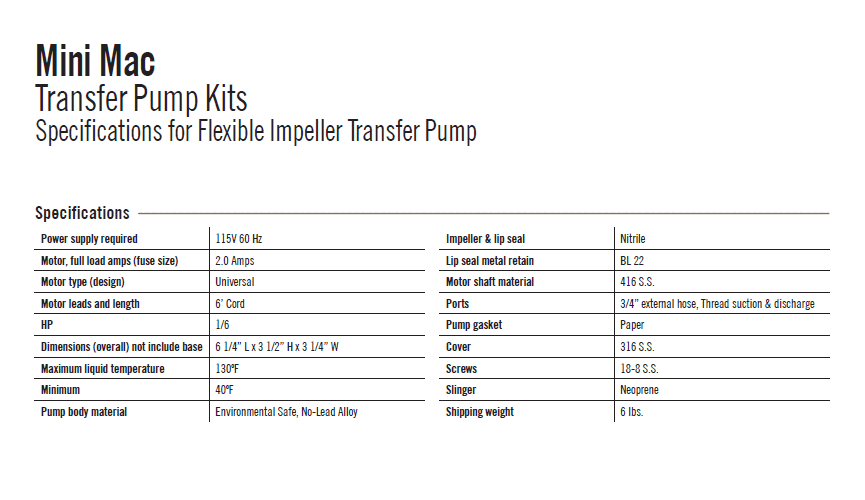

| Power | 115V, 60 Hz, 2.0 A, universal motor, 6 ft cord |
| HP | 1/6 |
| Dimensions | 6-1/4 in L x 3-1/2 in H x 3-1/4 in W, without base |
| Liquid temperature | 40°F to 130°F |
| Pump body | No-lead alloy |
| Cover | 316 stainless steel |
| Shaft | 416 stainless steel |

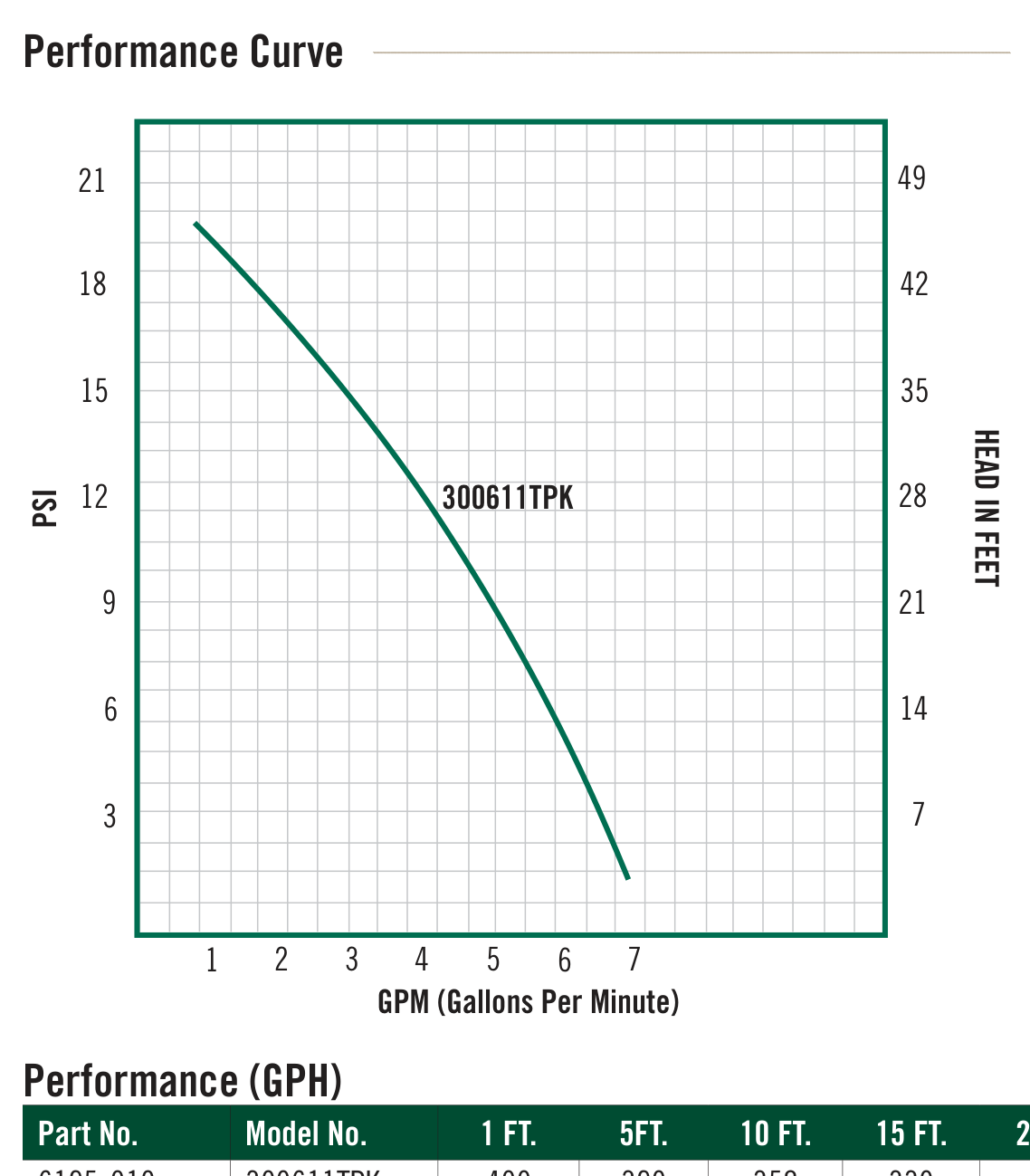

| Head | 1 ft | 5 ft | 10 ft | 15 ft | 20 ft | 30 ft | 40 ft | Shut-off |
|---|---|---|---|---|---|---|---|---|
| Flow, GPH | 400 | 390 | 358 | 330 | 295 | 225 | 120 | 48 ft |
Gallons per hour as printed by A.Y. McDonald; the shut-off figure is head. Source: Pumps by Baker catalog, rev 3/26, p. 340.
| Liquids | Water and compatible liquids, 40°F to 130°F; not flammable liquids. |
| Duty | Portable transfer; stay with the pump while it runs. |
| Impeller and lip seal | Nitrile |
| Cover | 316 stainless steel |
| Shaft | 416 stainless steel |
| Screws | 18-8 stainless steel |
